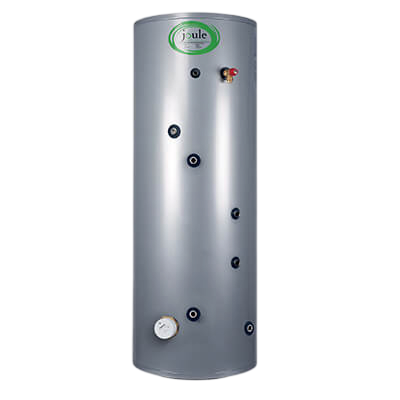

TCIMVH - 0300NFC Joule 300 Indirect High Gain Inc G3 kit
$2,875.00
In Stock
Direct from Supplier Order
Get in touch for pricing or lead times!
Not sure it's the right part?
Send us the model or part number, or call Kris or Baron on 01757 606 870 (Mon–Fri 8:30–5). We'll check before you order.
Need this part? Ask us about availability.
Send us the part number, or call Kris or Baron on 01757 606 870 (Mon–Fri 8:30–5). We'll check availability and come back with a price.
SKU: TCIMVH-0300NFC
Categories: Accessories and Consumables, All Products, Joule
Description
- Description
- Reviews
TCIMVH-0300NFC
Joule 300 Indirect High Gain Inc G3 kit
600mm Width - 1600mm High
- Manufactured from high grade Duplex stainless steel
- Fitted with Branded Quality Components
- Works with Air Source Heat pumps
Product Specification
Actual capacity (Ltr) 290
Thermal insulation DENSE PU FOAM
Unit weight empty (kg) 85
Cylinder material LDX 2101
Unit weight full (kg) 372
Outer casing COATED MILD STEEL
No. immersions 1
Coil material 316L STAINLESS STEEL
Immersion spec 3kW@230V
Foam thickness 50
Max mains water pressure (Bar) 10
Operating temp (C) 60
Operating pressure (Bar) 7
Safety valve temp (C) 90
Tested to standard BS EN 12897:2016
Warranty terms (Year) 25Y
No heat exchangers 1
Heat loss 2.21
Coil 1 rating (kW) 45
Coil 1 surface area (m²) 3
Coil 1 max prim pressure (Bar) 3.5
Coil 1 resistance (Bar) .09
